Read this guide to learn how to install and configure Multipath Input/Out (MPIO) to claim Fiber Channel (FC) LUMs on a Windows Server 2022.
Overview
To provide redundancy, LUMs are usually assigned to the Primary and Secondary WWPN of an FC HBA adapter port. Essentially, the FC LUM is assigned to two “paths.”
The benefit of multipath LUM assignment is that if one of the FC HBA ports breaks, the host server can still access the disk – leading to high availability.
Recommended Free Tools
However, with this multipath configuration, the assigned LUM appears as multiple disks in Windows Disk Management. In the screenshot below, the 1024 GB (1 TB) disk is a single Fiber Channel LUM.
Popular on Amazon
- The HPE Store Fabric SN1200E 16Gb Fiber Channel Host Bus Adapters deliver twice the I/O performance of 8Gb Fiber Channel (FC) Host Bus Adapters (HBAs) while being backward compatible with 8 and 4Gb FC
- The HPE Store Fabric SN1200E 16Gb Host Bus Adapters accelerate the time to business insight by completing data warehousing queries faster than 8 Gb FC HBAs
- The HPE Store Fabric SN1200E 16Gb Host Bus Adapters provides near limitless scalability to support increased virtual machine (VM) density with 2x more on-chip resources and bandwidth than previous
- The HPE Store Fabric SN1200E 16Gb Fiber Channel Host Bus Adapters are designed to support emerging NVM Express (NVMe) over Fiber Channel storage networks
However, the disk appears to Windows as two disks. The way to make this a single disk is to install and configure MPIO on the Windows Server.
The steps below outline the details.
Step 1: Install the MPIO Windows Server Feature
To install MPIO using Server Manager, follow these steps.

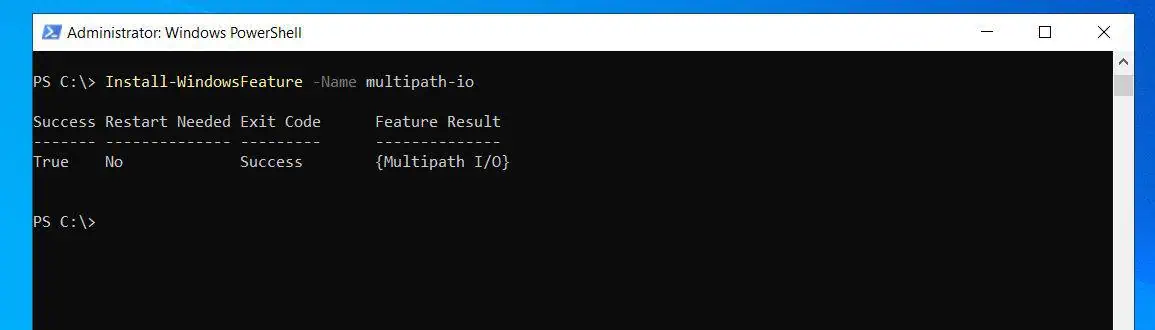

You can also complete this task with PowerShell (run PowerShell as administrator) by running the command below:
Quick wins for a faster PC:
Clear out junk files and repair common Windows errorsFree Scan →Scan for outdated or missing drivers - takes under a minuteDriver Scan →Repair Windows errors before they cause bigger problemsFix Now →Install-WindowsFeature -Name multipath-io
Installing with PowerShell is faster. However, if you prefer GUI, here are the steps:
Also popular on Amazon
- HPE QLogic QLE2662 HD8310405-02 16Gbps Dual-port Fibre Channel PCIe Network Adapter HBA with HPE 3PAR Storeserv 7400 / 8400 series Bracket
- Compatible with HP, HPE, DELL, IBM Servers, HPE 3PAR STORESERV
- Compatible with Other Generic Servers
- SFP Not included
- PCIe Dual Port 16Gbps FC

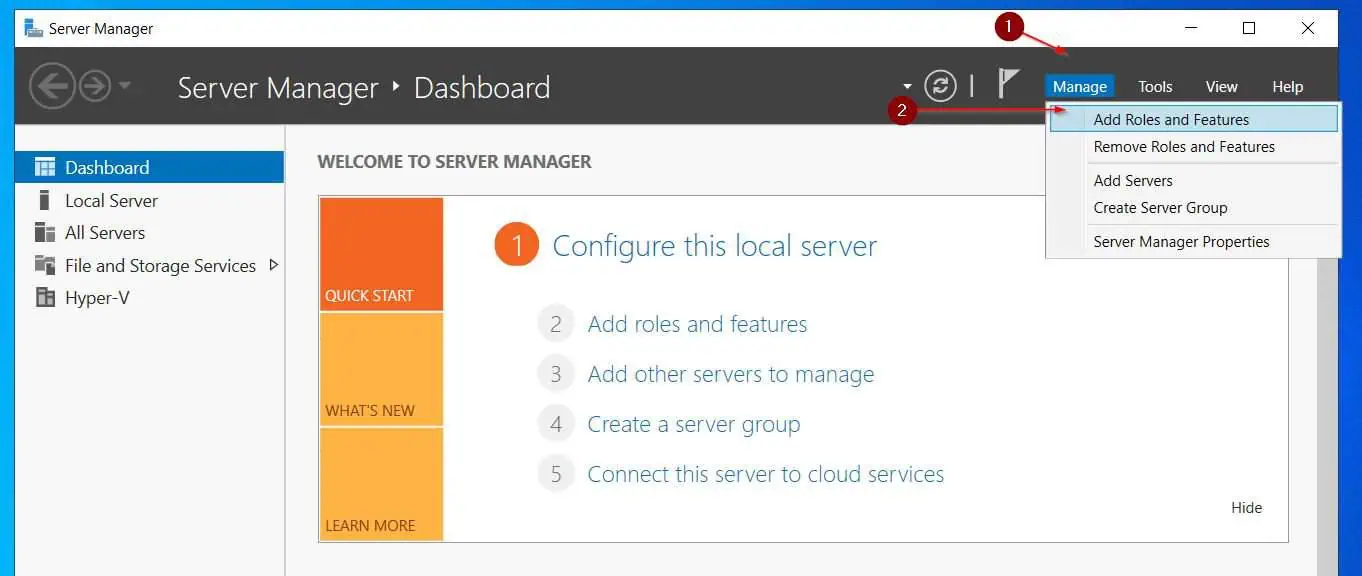

- From Server Manager, click Manage > Add Roles and Features.

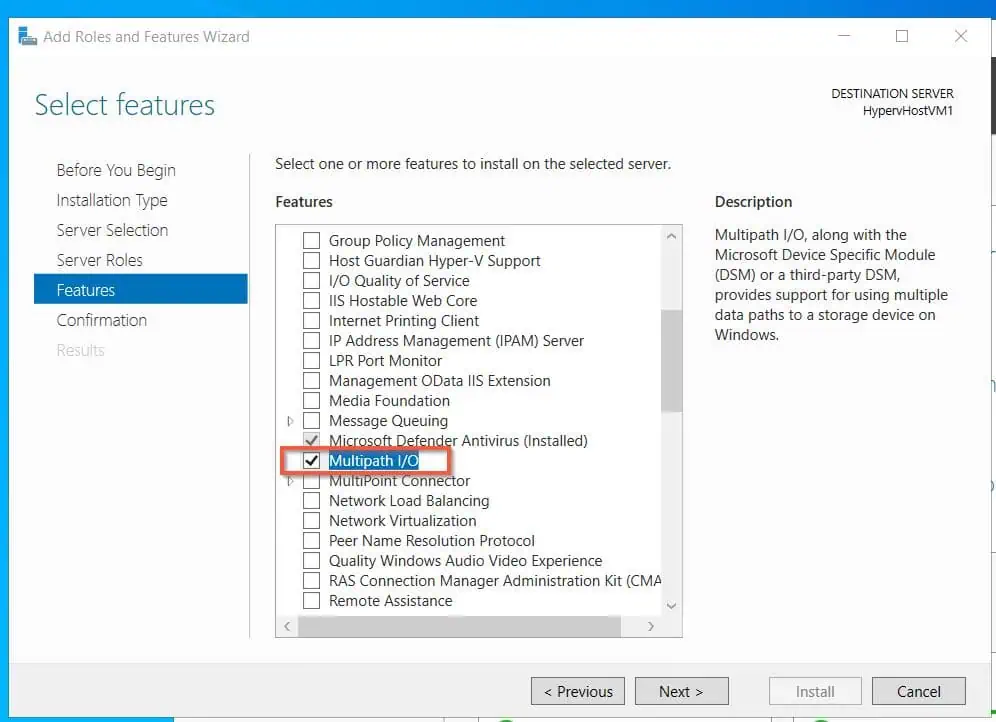

- Continue clicking Next until you get to the “Select features” node. Check the “Multipath I/O” checkbox and click next.

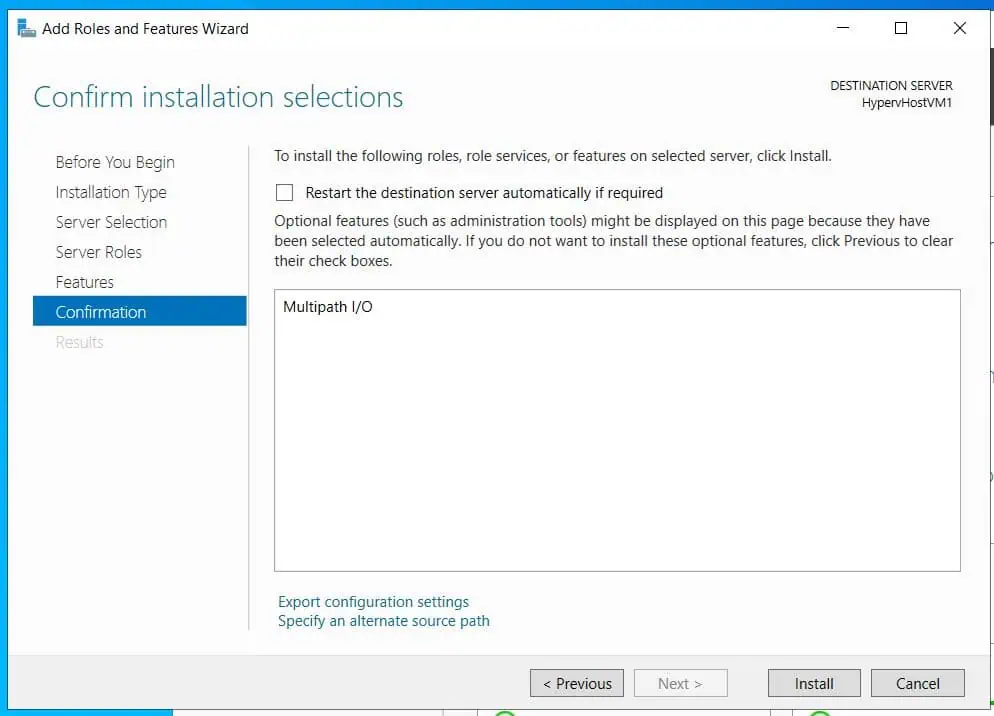

- Finally, continue clicking Next, then, on the final page, click Install.
Wait for the installation to complete, then, proceed to Step 2 below.
Step 2: Configure MPIO to Claim the FC Disks
You can configure using the MPIO GUI tool or with PowerShell. I have explained how to do both in the following subsections
Option 1: Claim the FC Disks with the MPIO Tool
Use this option if you’re claiming FC disks in a Windows Server with Desktop Experience (GUI). If you’re configuring MPIO in a Windows Server Core, use option 2.

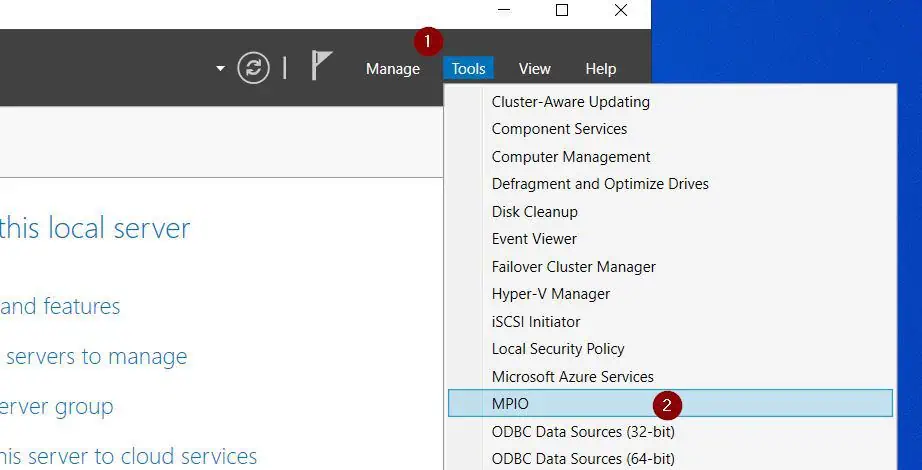

1. From Server Manager, click Tools and select MPIO.
Also popular on Amazon
- Total Number of Fibre Channel Ports: 2
- Number of LC Ports: 2
- Host Interface: PCI Express 3.0
- Fiber Mode Supported: Multi-mode
- Data Transfer Rate: 16 Gbit/s

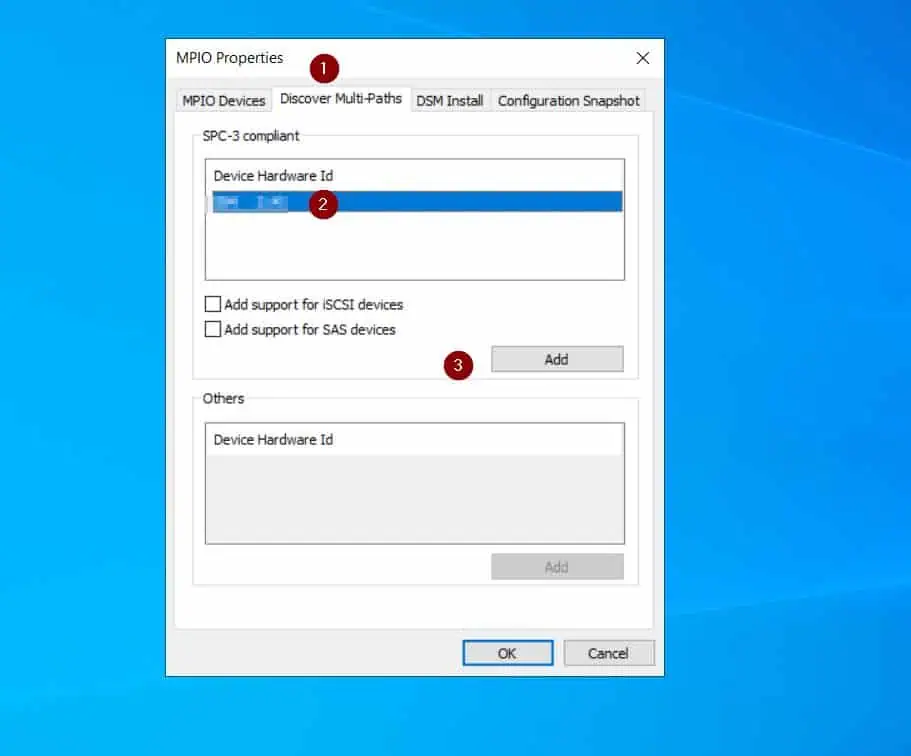

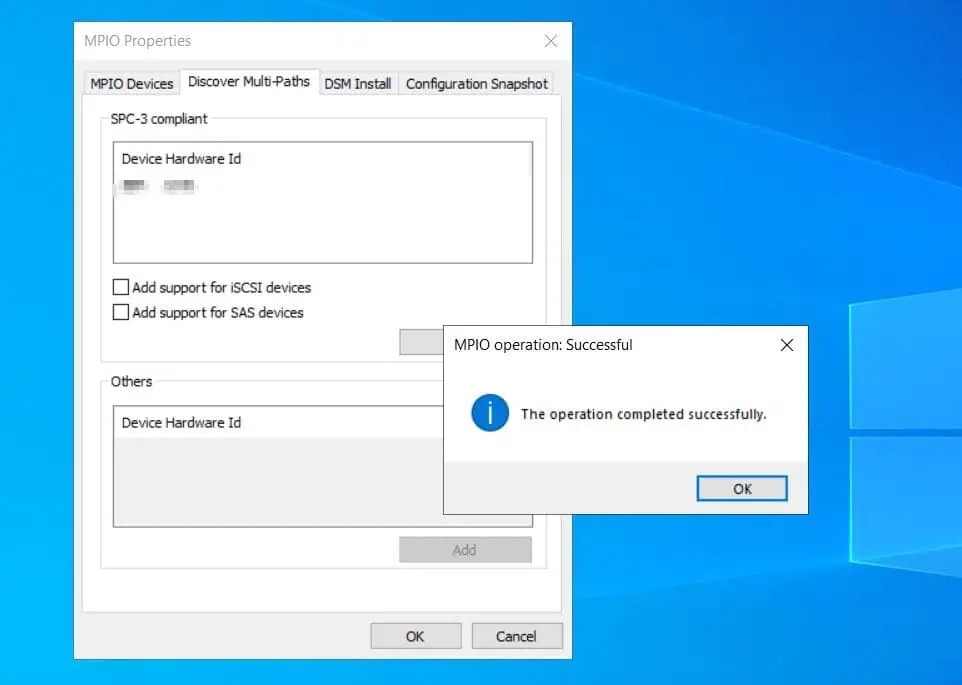

- Then, click the “Discover Multi-Paths” tab, select the Device Id under SPC-3 complaint, and click Add. Wait until the “MPIO operation completed successfully” message and restart the server.
Option 2: Claim the FC Disks with the MPIO PowerShell Commands
If you’re configuring MPIO to claim FC disks in a Windows Server Core installation, this is your only option as Server Core does not have GUI.

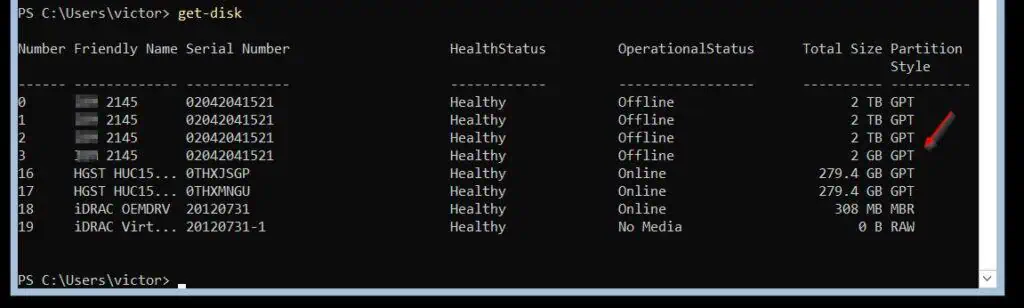

Before configuring MPIO, run Get-Disk to list all available disks. The Fiber Channel LUMs will be displayed as multiple disks.

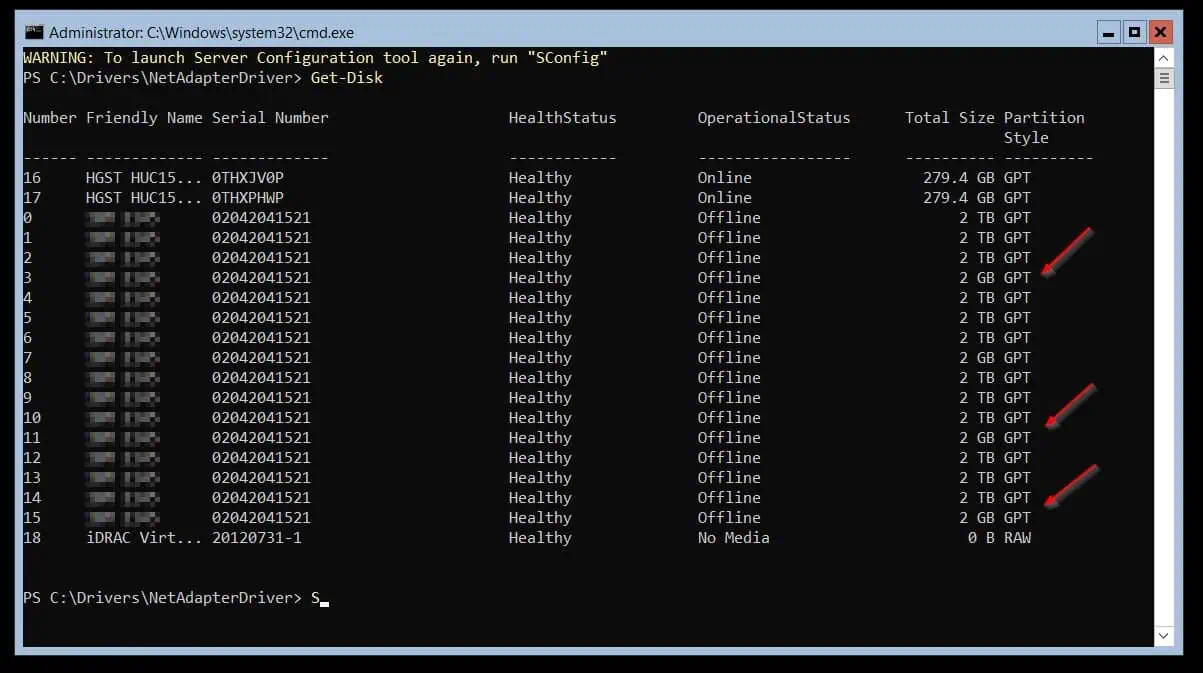

To help you understand the benefit of MPIO, the server from the screenshot below has been assigned 1x 2GB LUM and 3x 2TB LUMS. However, in my screenshot, there are 16 disks. This means that each LUM appears 3 times.
I have highlighted the 2 GB LUMs in my screenshots.
Also popular on Amazon
- QLE2562 Fibre Channel Host Bus Adapter offers next generation 8Gb FC technology.
- PX2810403-01
To combine the disks into 1 LUM, run this command on each host:
- Confirm that the device is not in the MPIO list by running this command.
Get-MSDSMSupportedHw
- To see available MPIO devices, run this command
Get-MPIOAvailableHW

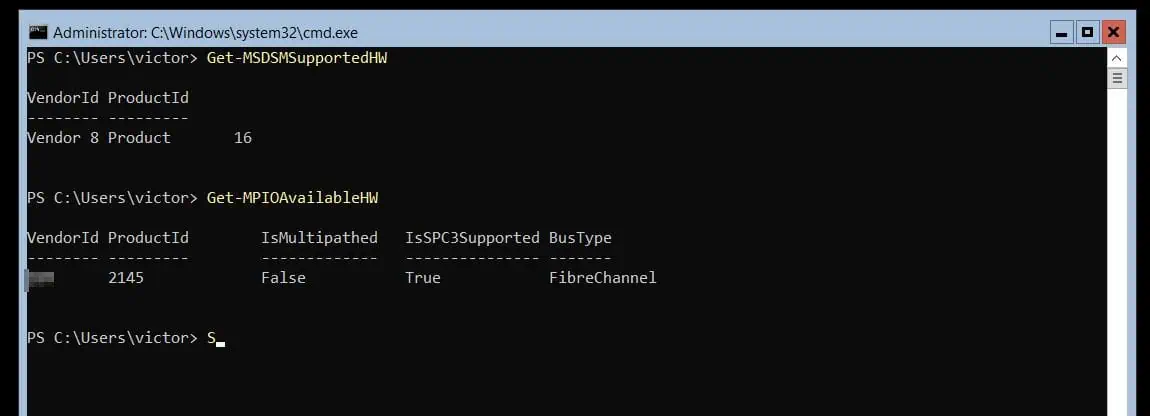

The first command shows the pseudo-Micorosft MPIO device. Meanwhile, the second command shows the MPIO device that I can add.
- To add this device to the list and claim the FC LUMs (combine them into single disks in Disk Management), run this command:
New-MSDSMSupportedHW -ProductID "VendorX" -VendorID "ProductY"
- After adding the device, re-running the Get-MSDSMSupportedHw lists the newly added MPIO device.
- Finally, run the Update-MPIOClaimedHW command and press enter when it prompts that a restart may be required. If a restart is not required, the command will return false.

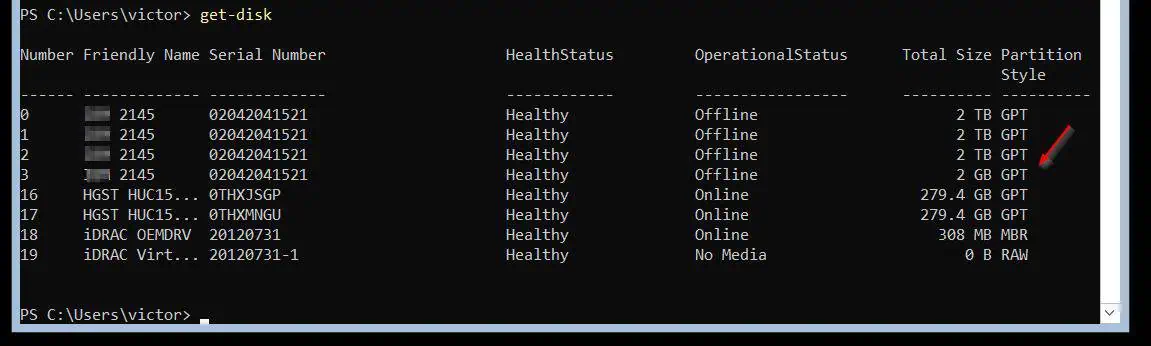

Now, re-run Get-Disk and see the magic – all the disks have been combined into 1 LUM! My server now has 1x 2GB and 3x 2TB disks.
Step 3: Configure the Claimed Disk in Disk Management

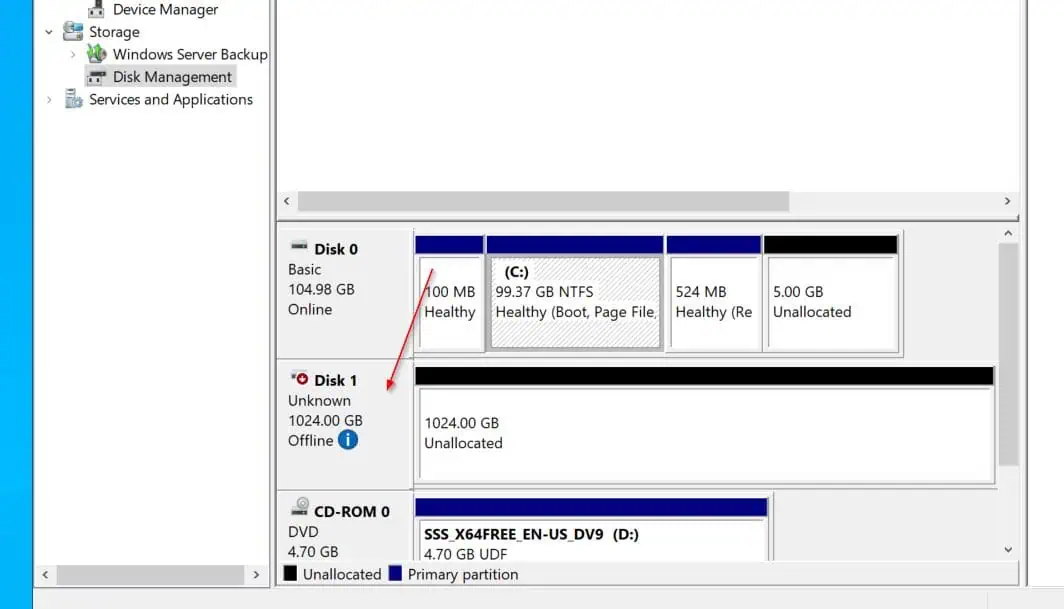

When the server restarts, open Disk Management (right-click Start Menu > Computer Management > Disk Management).
Also popular on Amazon
- Qlogic Qle2692 Fibre Channel Host Bus Adapter - 16 Gbit/s - 2 X Total Fibre Channel Port(s) - Plug-in Card
Disk Management shows the FC LUM as a single disk.

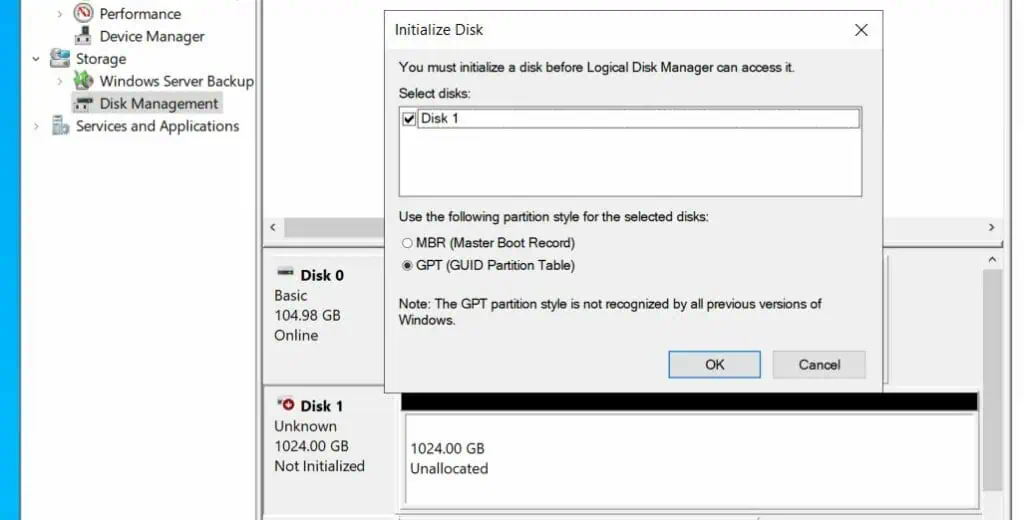

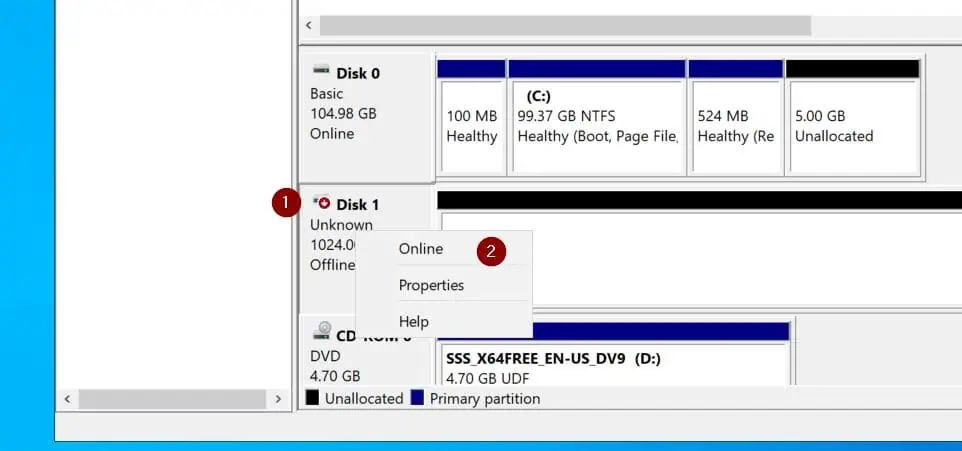

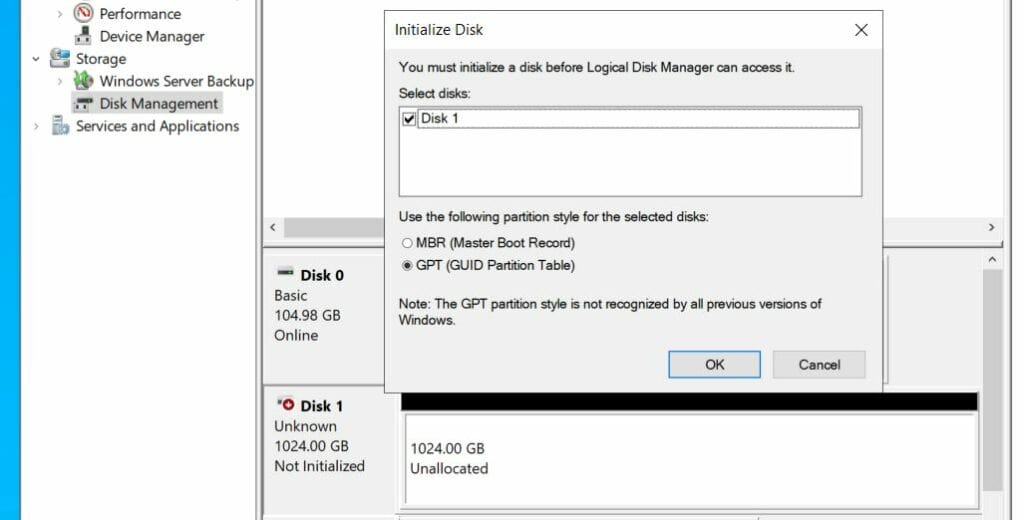

Bring the disk online, Initialize it, and create a volume as normal,

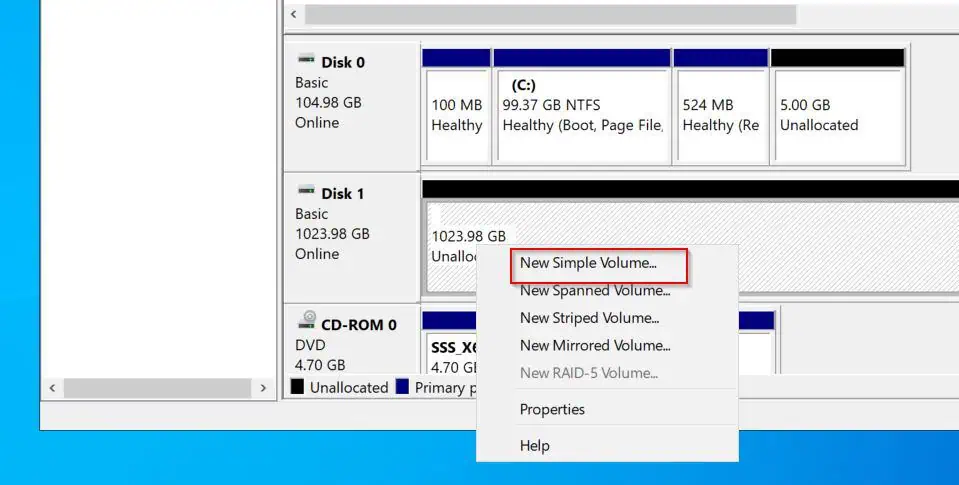

Finally, create a volume (or multiple volumes as you wish) and format the disk.
